Ribbon is a rigid solution for a flexible world

Why Every Solder Joint Is a Potential Failure Point in Flexible Modules

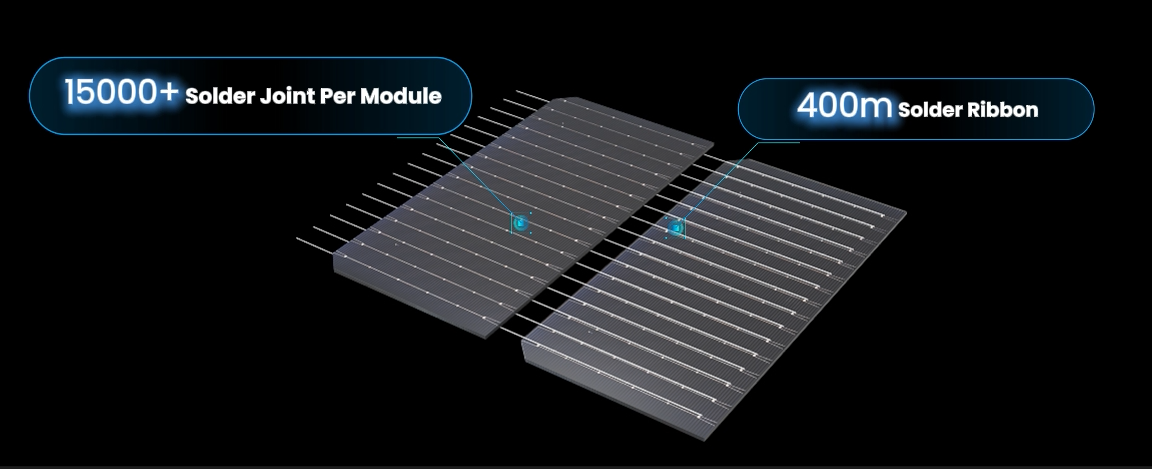

Ribbon-based interconnection depends on hundreds of physical solder joints. A single ribbon runs from one end of a cell to the other, passing through joint after joint. Each one is both an electrical connection and a mechanical stress point.

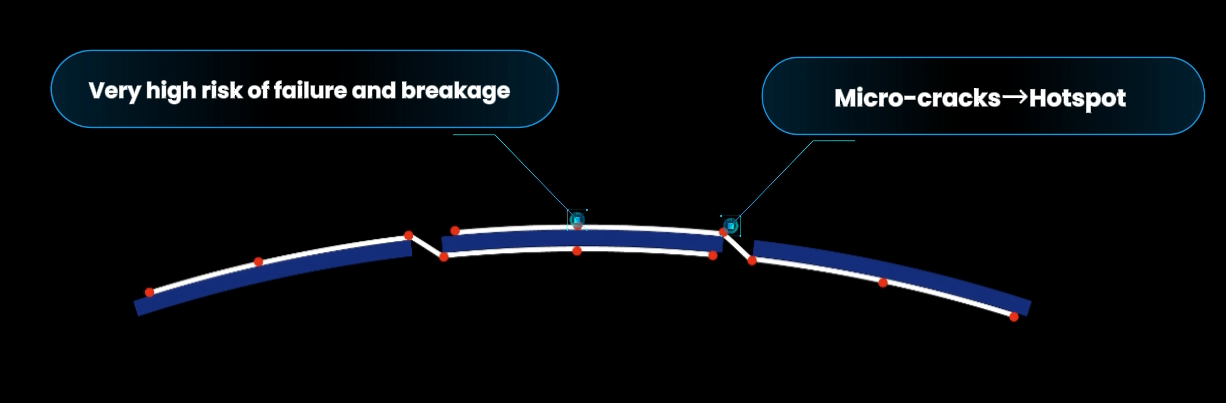

In rigid modules, glass and frame keep those joints stable. In flexible modules, everything changes. The module bends. It rolls. It conforms to curved and uneven surfaces. Every bend pulls at the solder joints. Stress builds. Micro-cracks form. It's not a question of if—it's a question of when.

A conventional ribbon module is only as reliable as its weakest solder joint. Soldering temperature, flux residue, thermal expansion mismatch between ribbon and cell—any one of these goes wrong, and it will eventually show. In flexible applications, those weak points surface faster.


Once a Joint Fails, the Chain Reaction Begins

Solder joint reliability is only the first hurdle. Even if the initial soldering passes inspection, the real tests are just starting:

Transport vibration — lightweight modules travel far, and vibration and impact go straight into the joints.

Thermal cycling — day-night swings and seasonal changes, combined with thermal expansion mismatch, repeatedly pull at the joints.

Weather exposure — long-term outdoor exposure degrades materials and weakens joint strength further.

Over time, micro-cracks, cold joints, and ribbon detachment follow. In mild cases, degradation accelerates and power output drops year after year. In severe cases, localized resistance rises, hot spots form—and in the worst case, fire.

The Deeper Problem: The Ribbon Itself Wastes Power

Beyond mechanical reliability, ribbon interconnection has another flaw that's easy to overlook.

The ribbon is the current path. Every solder joint is a stop along the way. Current leaves the cell and must pass through countless joints before reaching the busbar. More nodes mean more contact resistance. When current can't flow freely, that energy doesn't vanish—it becomes heat, concentrated at the joints.

Studies show that heat loss in the ribbon accounts for more than 60% of a module's total resistive power loss. Ribbon interconnection doesn't just create reliability risks—it steadily eats into the module's output.

PEC-BC: Design It Out, Don't Patch It

The conventional response to these problems is to patch: better solder, better processes, more inspection. But none of that changes the fundamental fact—the joints are still there. The stress points are still there. The current-path bottlenecks are still there.

Peakup Power's PEC-BC (Back Contact + Planar Electrical Connection) takes a different route:

Zero ribbon — conductive copper foil replaces conventional ribbon.

Zero solder joints — conductive adhesive bonding, flexibly laminated on the rear side.

Zero heavy metals — no tin alloy coating(lead-free), less environmental burden.

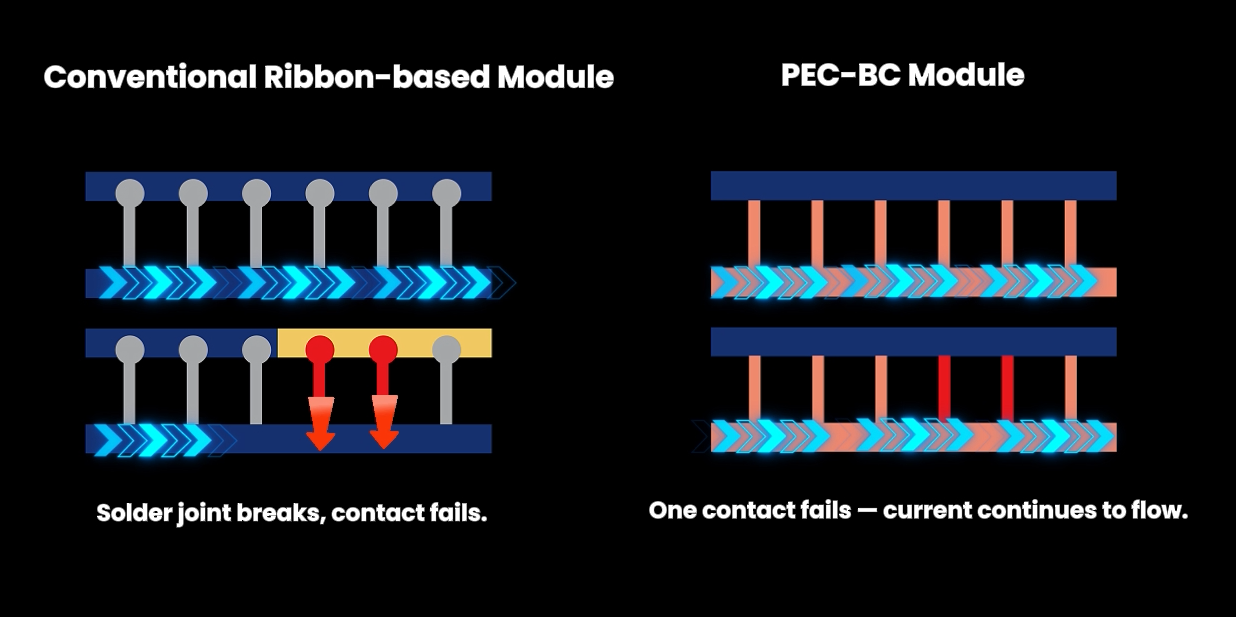

PEC-BC doesn't optimize solder joints. It eliminates them. Electrical connection shifts from point contact to surface contact.

What PEC-BC removes is not engineering complexity—it's the failure modes and resistive-loss pathways. The complexity moves from soldering to copper foil patterning and conductive adhesive lamination. But the reliability logic changes from "every joint must hold" to "the whole surface shares the load."

Conductive Copper Foil: From "Line" to "Surface"

PEC-BC replaces ribbon with a flexible, patterned copper foil. This isn't a material swap—it's a structural change.

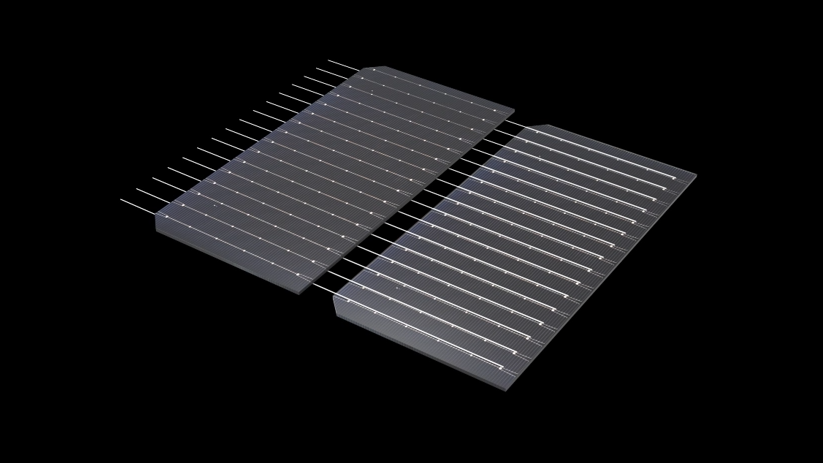

Conventional ribbon is a linear conductor. Current leaves the cell, squeezes through a narrow ribbon, and converges at the busbar. High current density, long path, resistance stacking up at every joint.

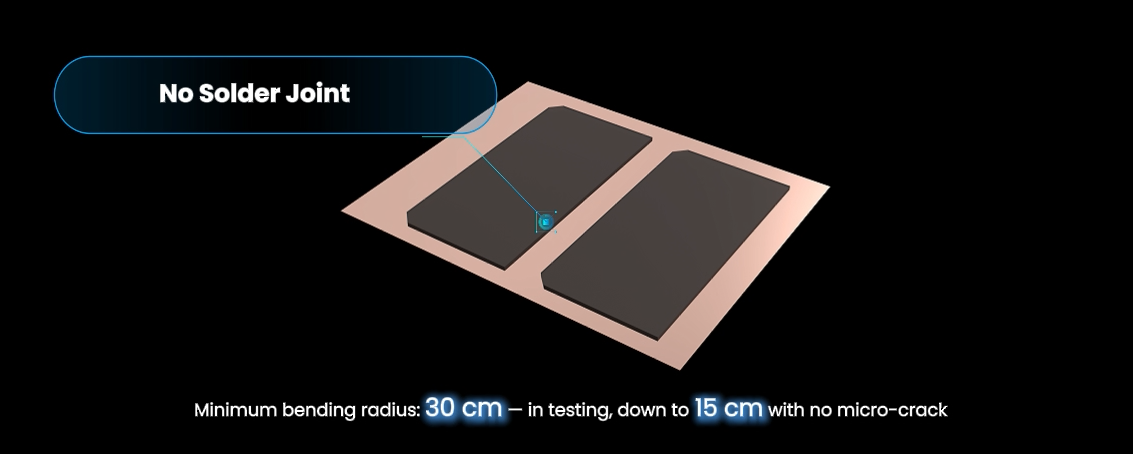

Conductive copper foil is a surface conductor. The entire rear side is covered with patterned copper foil, and current flows directly through the conductive adhesive into a planar network. No squeezing through a thin wire—current spreads across a wide surface. Shorter path, larger cross-section, lower resistance and heat.

No joints, no stress points. No ribbon, no 60% line-loss channel. Under bending, vibration, and thermal cycling, the module no longer depends on fragile soldered interfaces to stay connected.


The Cost of Doing It Right

PEC-BC does cost more to make. As Peakup Power puts it: "Cutting corners was never part of the plan."

Lightweight flexible modules go where rigid modules can't—vehicles, portable power, curved rooftops, mobile energy. Those applications demand more from a module, not less. Using ribbon-based interconnection for flexible modules is applying rigid-module logic to a flexible world.

Ribbon interconnection can make a flexible module. It just can't make one that lasts. Every solder joint is a potential failure point. Every segment of ribbon is a continuously heating line-loss channel. PEC-BC eliminates those problems by design—not by patching them later.

The difference isn't in how the module looks. It's in what's buried inside—and what isn't.
